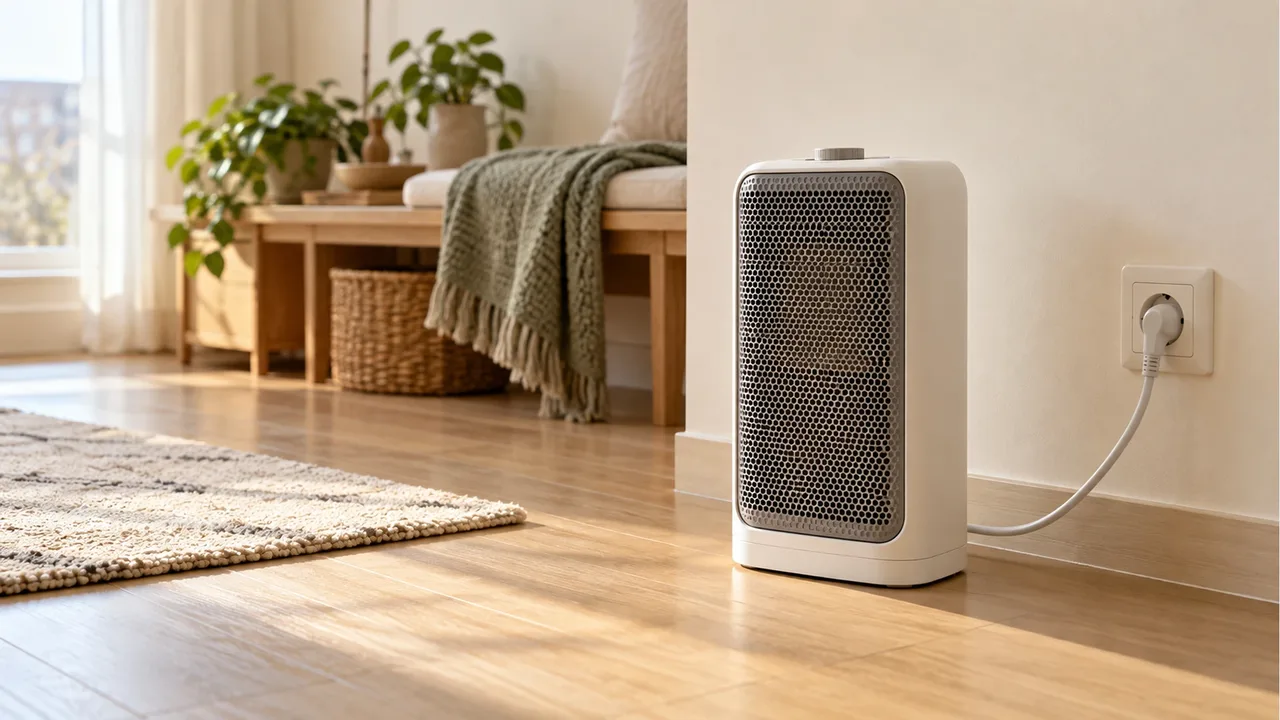

Check heating efficiency and monthly energy cost on electric fan heater labels

Check Minimum Efficiency Standard Compliance Instead of Grades 1 to 5

Under the Regulation on Efficiency Management Equipment, electric fan heaters with a rated power consumption between 500W and 10 kW are designated for efficiency management. In this regulation, electric space heaters are not assigned standard 1 to 5 efficiency grades. The regulation establishes a minimum energy efficiency standard as a legal baseline to prevent substandard units from being distributed, and compliant products display an energy consumption label.

Along with standard compliance, the label indicates heating efficiency (%), power consumption (W), and CO2 emissions per hour (g/hour). Heating efficiency measures the ratio of generated heating output to electrical energy consumed under standardized test conditions. A higher number indicates that more heat is delivered for the same amount of consumed electricity.

Understand Why Monthly Energy Costs Are Split into Residential and Commercial

The most noticeable element on an electric fan heater label is the dual monthly energy cost breakdown. Under national regulations, electric space heaters with a rated power under 3 kW must list both residential and commercial costs side by side. Large heaters rated at 3 kW or higher display only commercial rates.

Residential costs appear significantly higher due to KEPCO's progressive tier structure for home electricity. Under the standardized testing schedule (operating a fixed number of hours per day), residential costs reflect higher progressive bracket rates. Commercial electricity for shops and offices applies seasonal and time-of-use tariffs rather than progressive brackets, yielding a lower estimated cost. These figures represent standardized benchmark estimates, and your actual monthly bill will depend on whether this heater pushes your household into a higher progressive tier.

Compare Power Stages Between Two Shinil Heater Models

Reviewing the specifications of Shinil space heaters used in homes and compact rooms shows differences in power levels and temperature controls. The official manufacturer specifications for the SEH-B1500WG PTC bathroom fan heater and the SEH-CN2000 convector heater are summarized below.

The Shinil SEH-B1500WG offers 3-stage adjustment. Operating in Eco mode uses 1,100W, while High mode consumes 1,500W. Falling below the 3 kW threshold, its label displays both residential and commercial monthly cost projections. The 2,000W SEH-CN2000 operates at 1,000W on stage 1 and 2,000W on stage 2. Because both units exceed 1,000W, plugging them directly into a dedicated wall outlet with sufficient rated capacity is recommended for safety.

Points to Review When Estimating Heater Power and Electricity Costs

When using an electric fan heater as supplementary heating, reviewing these three facts in advance is helpful.

1. Review Residential Monthly Costs on the Label: The figure shown on the label assumes only this appliance operates for the standard duration. If your household's baseline consumption from refrigerators, televisions, and laundry already exceeds 300 kWh, additional heater power will be billed at Tier 3 rates.
2. Utilize Eco Mode and Temperature Controls: When room temperature reaches the desired set point, automatic thermostat cutoffs reduce output or pause operation, preventing the heater from drawing the maximum 1,500W continuously.
3. Check the Official Efficiency Management Portal: By entering the model name in the product search menu on the Korea Energy Agency Efficiency Management portal, you can directly cross-check the reported power consumption and heating efficiency ratings.

When choosing an electric fan heater, check the heating efficiency and dual monthly cost disclosures on the label rather than looking for a Grade 1 rating.
